GL Series Premium Connections for Casing and Tubing
To meet the different demands for thread connection strength, seal performance, and other performance in the exploitation of oil & gas fields, Glory Tube has successively developed a series of GL-JT, GL-T1, GL-T2, GL-T3, and GL-T4 premium connections. Glory Tube premium connections have been widely used in domestic oilfields like Daqing Oilfield, Qinghai Oilfield, and Huabei Oilfield, as well as foreign oilfields in Europe, Australia, Middle East, etc.
Glory Tube premium connection tubing and casing products possess a unique technology, quality, and service characteristics:
-
1) The support of the entire R&D and manufacturing technology process. Product design is continually improved and studied using computer simulations and full-size real object tests to provide users with safer and more efficient special threaded joint tubing and casing products. From steelmaking. rolling, and heat treatment to the precision processing of threads, quality is controlling in line with the quality requirement of the ISO9001 quality management system as well as API Spec 5CT and API Spec 5B. Thread machining adopts advanced CNC machines.
-
2) Trustworthy product reliability. The products can satisfy the performance requirements of API for internal pressure strength, tensile strength, and the capacity of bearing combined bending + tension + internal pressure. A full evaluation is conducted in accordance with the ISO13679 standard to guarantee product performance. Typical premium connection products have passed the evaluation experiment of Stress Engineering Services, Inc, and CNPC Tubular Goods Research Institute.
-
3) Service objective of taking user satisfaction as the tenet end mechanism for pre-sales and after–sales service system. With a strong technological base and the long-term accumulation of experience regarding different kinds of service conditions, Glory Tube assists its users in finishing the design of optimized tubing end casing wells, provides users with corresponding technical consultation, and has the supporting goods supply capacity for tubing and casing columns. The company dispatches professionals on–site to assist the drilling crew with the operation of the GL series tubing and casing products in the well.
GL-T4 Premium Connection Casing and Tubing
GL-T4 is providing high connection strength and good seal performance. Hooked thread and a modified -3° reverse angle on bearing plane not only provide the connection with super tension stress, but also against gluing. The specialized metal seal geometry can offer excellent gas tight sealing performance even under load of high tension and compression, sealing integrity remains constant despite repeated make-ups and break-outs. It is suitable for the work conditions in extended reach well and long horizontal well. The GL-T4 Premium Connection has been passed API 5C5 CAL IV TEST by American Stress Technologies Inc.

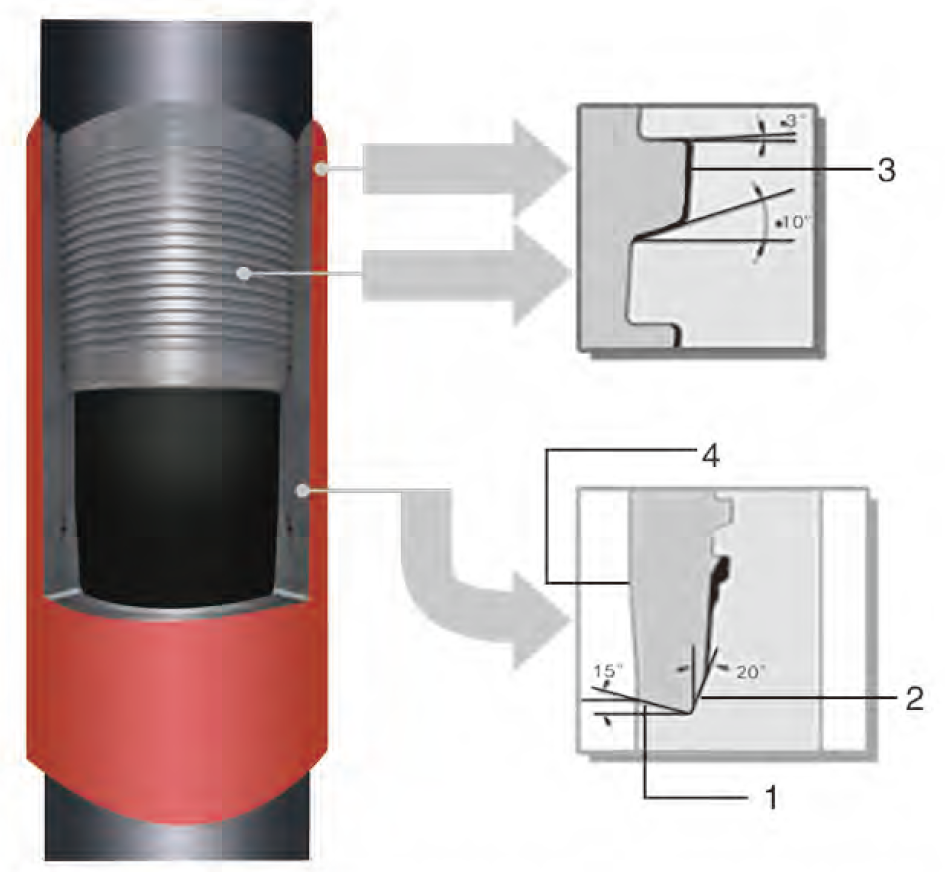

Design features of GL-T4
Design Features of GL-T4 Premium Connection of Casing and Tubing
|
Item |
Design |
Features |
|
1 |
-15° torque shoulder |
Positive torque stop. over torsion resistance, auxiliary seal |
|
2 |
Metal to metal main seal
with angle of inclination
(Tubing 50% inclination, Casing 20°) |
Excellent gas tight sealing performance even under load of high tension and compression |
|
3 |
-3" hooked thread design
on bearing plane |
Resistance to tension strength, anti gluing, superior mechanical property |
|
4 |
Streamlined internal structure
(Tubing 3°, Casing 6°) |
Minimizing turbulence and energy loss at the connection when the high velocity gas flows encountered |
